Details

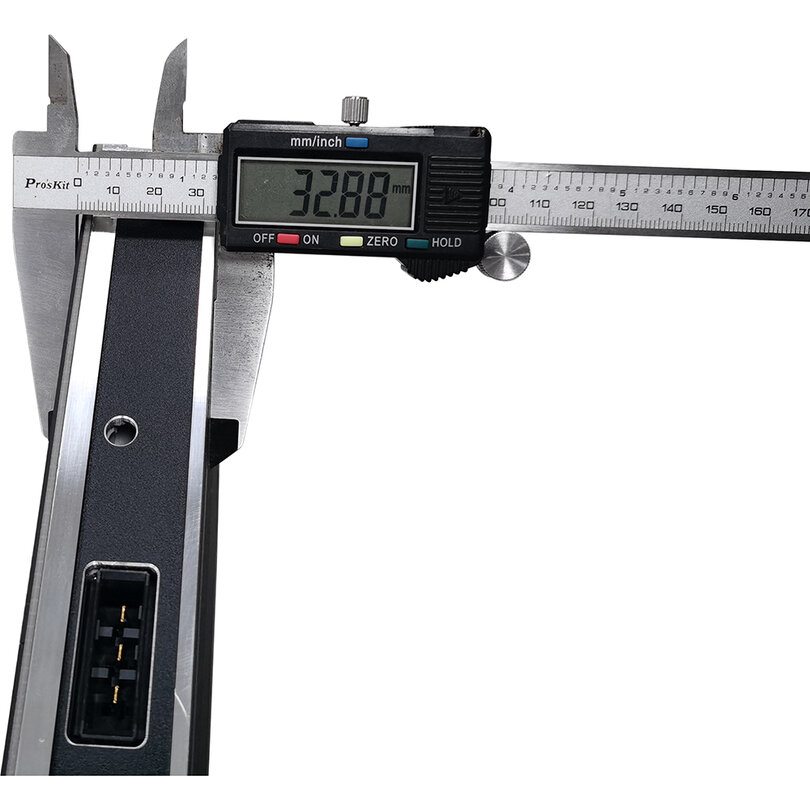

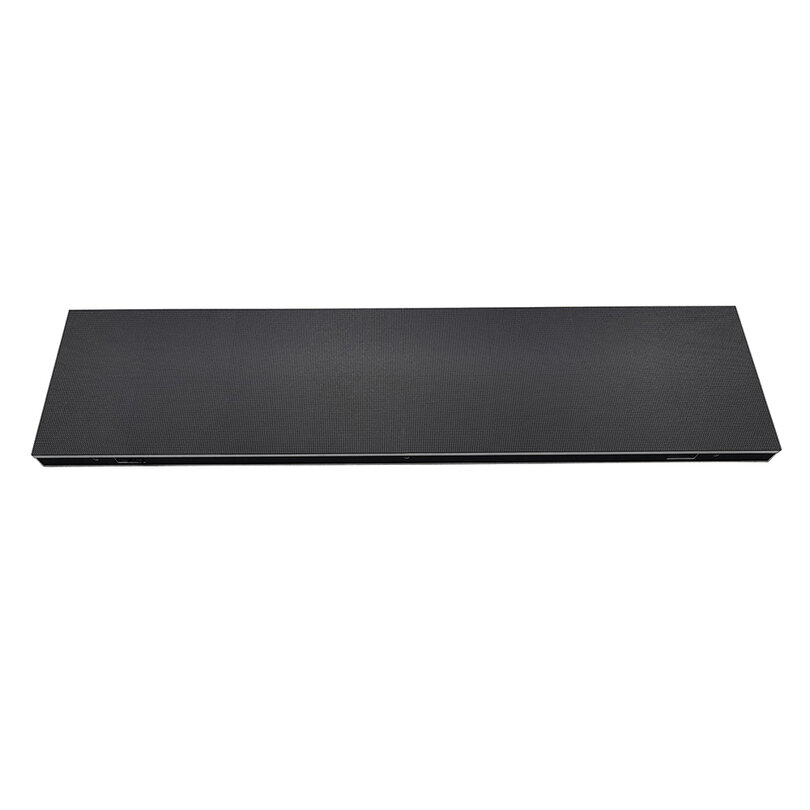

1）Die cast aluminum integrated cabinet,high precision,with a total thickness of 33mm. Six sizes are available.
500*250mm/500*500mm/750*250mm/1000*250mm/1000*500mm

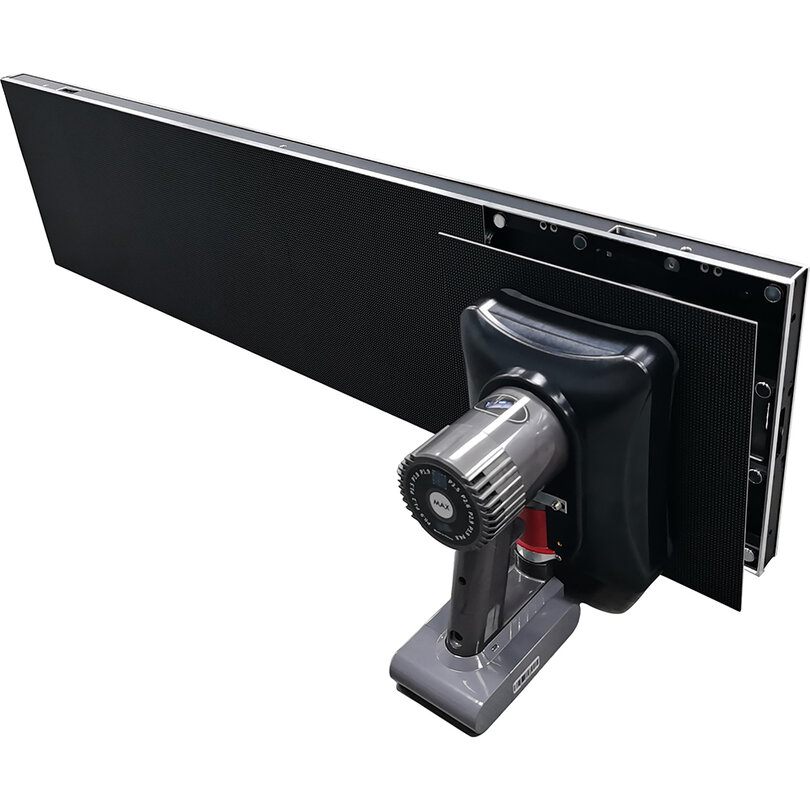

2） Front Maintenance
Support pre-installation.per-maintenance and zero space constraint.
Simple operation ,quick installation and maintenance,and truly save worry,effort and time.
3） 160° Large viewing angle ,3840Hz High refresh rate,10000:1 High contrast ratio.

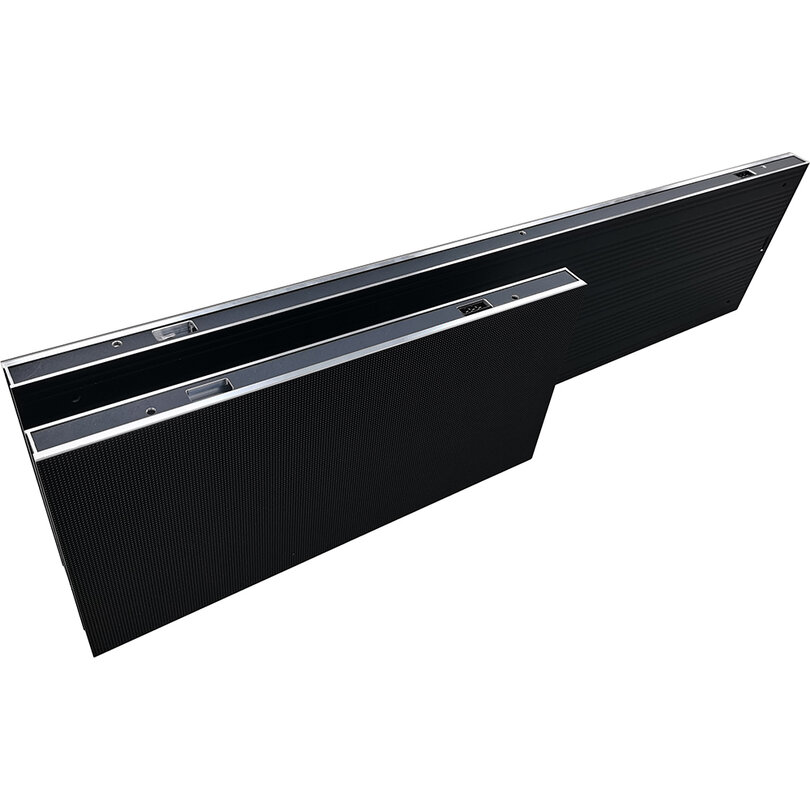

4） Cabinet Detail The cabinet is made of high-precision die-cast material.The outer light color of the cabinet is silver and sub-black for customers to choose.The design of reinforcing ribs is added in side the cabinet to ensure the flatness of the product and enhance the customer experience. The internal power cord plug-in interface is fixed,which makes customer installation faster and more convenient,effectively improving customer installation efficiency.
5）Creative Splicing Six cabinets can be flexibly spliced horizontally and vertically.It provides unlimited possibilities for your creative conception and application in any scene.
Meet a variety of creative splicing needs,unlimited imagination.
Specification Parameter
|
Pixel Pitch |
P1.25 |
P1.56 |
P1.95 |
P2.5 |
P2.604 |
P2.976 |
P3.91 |
|
LED Type |
SMD1010 |
SMD1010 |
SMD1515 |
SMD1515 |
SMD1515 |
SMD1515 |
SMD2020 |
|
Physical Density |
640000 |
409600 |
262144 |
160000 |
147456 |
112896 |
65536 |
|
Module Resolution |
200*200 |
160*160 |
128*128 |
100*100 |
96*96 |
84*84 |
64*64 |
|
Module Dimension(mm) |
250*250 |
||||||
|
Panel Size (mm) |
500*250*33/750*250*33/1000*250*33/500*500*33/750*500*33/1000*500*33 |
||||||
|
Module Quantity(W*H) |
2*1/3*1/4*1/2*2/3*2/4*2 |
||||||
|
Panel Resolution |
400*200 600*200 800*200 400*200 600*400 800*400 |
320*160 480*160 640*160 320*320 480*320 640*320 |
256*128 384*128 512*128 256*256 384*256 512*256 |
200*100 300*100 400*100 200*200 300*200 400*200 |
192*96 288*96 384*96 192*192 288*192 384*192 |
168*84 252*84 336*84 168*168 252*168 336*168 |
128*64 192*64 256*64 128*128 192*128 256*128 |
|
Maintenance |
Front |
||||||
|
Cabinet Material |
Die cast aluminum |
||||||
|
Brightness(Nits) |
600 |
600 |
800 |
800 |
800 |
800 |
800 |
|
Color Temperature(K) |
5000-12000(Adjustable) |
||||||
|
Viewing Angle(V/H) |
160°/160° |
||||||
|
Frame Frequency |
50/60 |
||||||
|
Drive Mode |
1/50 |
1/40 |
1/32 |
1/25 |
1/32 |
1/28 |
1/16 |
|
Gray Level(Bit) |
14/16 Optional |
||||||
|
Max. Power(W/sqm） |
350 |
||||||
|
Avg。Power(W/sqm) |
100-200 |
||||||
|
Refresh Rate(Hz) |
3840 |
||||||
|
Protection Level |
IP31 |
||||||
