Specification
| Item | P1.86 | P1.963 | P2.5 | P2.9 | P3.9 |
| Pixel Pitch | 1.86mm | 1.953mm | 2.5mm | 2.9mm | 3.9mm |
| LED Type | SMD1212 | SMD1212 | SMD1415/1515 | SMD1415/1515 | SMD1415/1515 |
| Mask | GOB | GOB | GOB | GOB/PC Mask | GOB/PC Mask/Glass |
| Module Resolution | 134*134 | 128*128 | 100dots x 100dots | 84dots x 84dots | 64dots x 64dots |
| Driving Mode | 1/23scan | 1/16scan | 1/21scan | 1/21scan | 1/16scan |
| Module Pixels | 17956dots | 16384dots | 10000dots | 7056dots | 4096dots |
| Module Size | 250mm*250mm | 250mm*250mm | 250mm x 250mm | 250mm x 250mm | 250mm x 250mm |

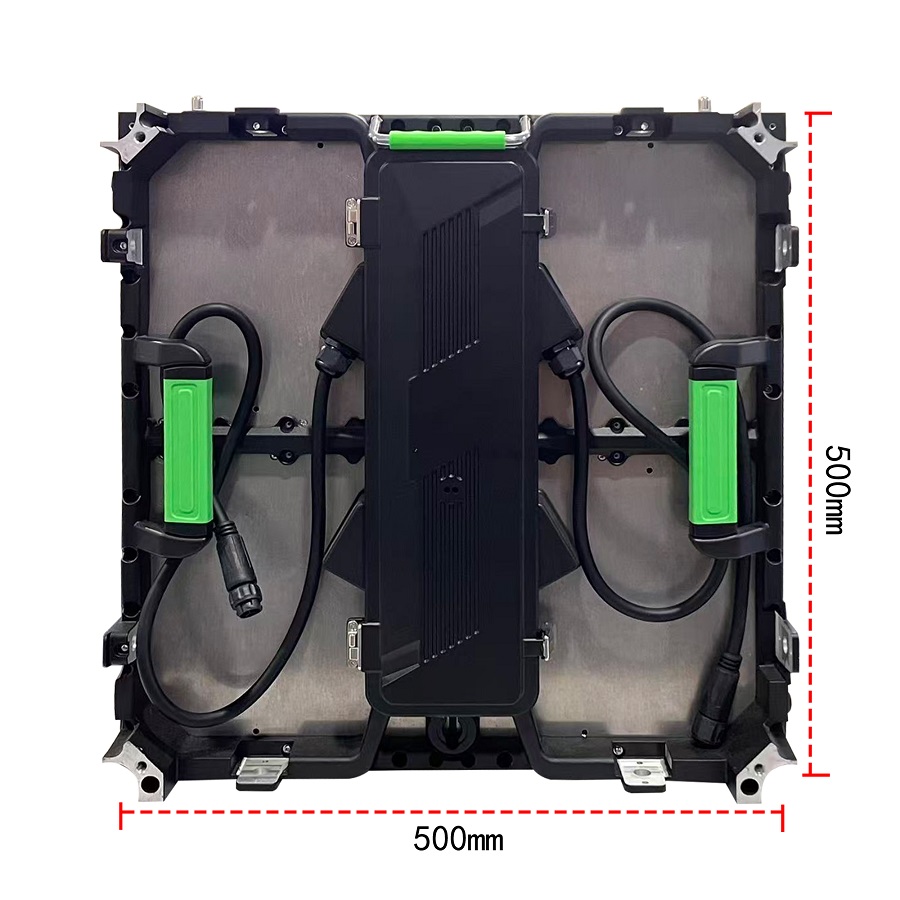

| Cabinet Size | 500mm*1000mm/500mm*500m | 500mm*1000mm/500mm*500m | 500mm*1000mm/500mm*500m | 500mm*1000mm/500mm*500m | 500mm*1000mm/500mm*500m |
| Cabinet Resolution | 268dots*536dots | 256dots*512dots | 200dots x 400dots | 168dots x 336dots | 128dots x 256dots |
| Pixel Density | 287296dots/㎡ | 262144dots/㎡ | 160000dots/㎡ | 112896dots/㎡ | 65536dots/㎡ |
| Minimum Viewing Distance | ≥1.8m | ≥1.95m | ≥2.5m | ≥2.9m | ≥3.9m |
| Brightness | 1000nits | 1000nits | 1000nits /4500nits | 1000nits/4500nits | 1000nits/4500nits |
| IP Grade | Front IP65/Rear IP 43 | Front IP65/Rear IP 43 | Front IP65/Rear IP43 | Front IP65/Rear IP43 | Front IP65/Rear IP43 |
| Refresh Rate | 3840-7680Hz | 3840-7680Hz | 3840-7680Hz | 3840-7680Hz | 3840-7680Hz |
| Gray Scale | 14-16bit | 14-16bit | 16bit | 16bit | 16bit |
| Viewing Angle | 160°/160°(H/V) | 160°/160°(H/V) | 160°/160°(H/V) | 160°/160°(H/V) | 160°/160°(H/V) |
| Maximum Power Consumption | 200W/Panel | 200W/Panel | 200W/Panel | 200W/Panel | 200W/Panel |
| Average Power Consumption | 70W/Panel | 70W/Panel | 70W/Panel | 70W/Panel | 70W/Panel |
| Input Voltage | 100~240V AC 50-60Hz | 100~240V AC 50-60Hz | 100~240V AC 50-60Hz | 100~240V AC 50-60Hz | 100~240V AC 50-60Hz |
| Operating Temperature | -10℃~+60℃ | -10℃~+60℃ | -10℃~+60℃ | -10℃~+60℃ | -10℃~+60℃ |
| Operating Humidity | 10~90%RH | 10~90%RH | 10~90%RH | 10~90%RH | 10~90%RH |
| Cabinet Material | Die cast aluminum | Die cast aluminum | Die cast aluminum | Die cast aluminum | Die cast aluminum |
| Cabinet Weight | 9.5kg | 9.5kg | 9.5kg | 9.5kg | 9.5kg |
